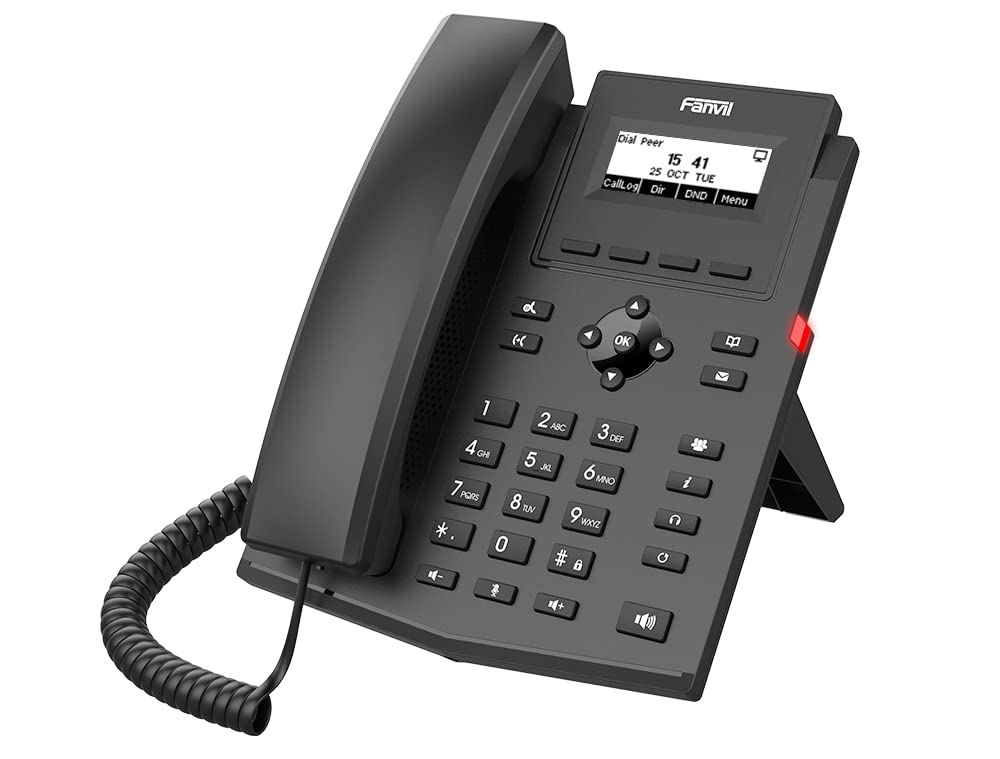

Fanvil x301w WiFi Phone

🔹 Display & User Interface

• 2.3-inch 128×48 pixel dot-matrix display with backlight for easy navigation.

• User-friendly interface with 33 keys, including soft keys and navigation buttons.

🔹 SIP & Conferencing Capabilities

• Supports 2 SIP lines, facilitating multiple call handling.

• Enables 6-way local audio conferencing, enhancing team collaboration.

🔹 Audio Features

• HD audio quality on both handset and speakerphone.

• Supports wideband codecs G.722 and Opus, as well as narrowband codecs like G.711a/u, G.729AB, G.726, and iLBC.

• Advanced audio processing with features like Acoustic Echo Cancellation (AEC), Noise Reduction (NR), and Automatic Gain Control (AGC).

🔹 Network & Connectivity

• Fanvil x301w WiFi Phone has Built-in dual-band Wi-Fi (2.4GHz & 5GHz) supporting 802.11 a/b/g/n/ac standards for flexible wireless connectivity.

• Dual 10/100 Mbps Ethernet ports with integrated Power over Ethernet (PoE) for simplified installation.

• EHS support for seamless integration with wireless headsets from brands like Plantronics and Jabra.

🔹 Usability & Design

• Desktop and wall-mountable design to suit various office environments.

• Programmable DSS/soft keys for customized functionality.

• Supports handset, hands-free, and headset modes for versatile communication.

🔹 Phonebook & Call Management

• Local phonebook with capacity for 1000 entries; supports remote phonebooks via XML/LDAP.

• Call logs for up to 600 entries, including incoming, outgoing, and missed calls.

• Features like call forwarding, call transfer, call waiting, and do-not-disturb enhance call management.

🔹 Security & Management

• Supports encryption protocols such as TLS, SRTP, and HTTPS for secure communication.

• Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069 for easy deployment.

• Web-based management portal for straightforward configuration and maintenance.

🔹 Physical Specifications

• Dimensions: 169×201.1×177.4 mm (desktop stand at 45°).

• Operating temperature: 045℃; humidity: 1095%.

• Power consumption: 1.21~2.38W; powered via DC 5V/1A adapter or PoE.
